We hope you'll read the Pure Water Gazette's new "Today's Top Water News" section. New articles appear daily. Some examples of recent posts are linked below. |
The Value of a Good Water Test
by Gene Franks
One of the things I've come to believe in very strongly after more than 25 years in the water treatment business is water testing.
Water plays such an important role in our lives that it only makes sense to know as much as possible about the water we use.
A high quality water test is worth many times its cost. Whether you have a private water source or get water from a city supplier, an independent water test will give you extremely valuable information about your water.
It you find out that you have great water with no significant treatment issues, that is the most valuable information of all, and the test pays for itself many times over, both in peace of mind and in avoidance of purchasing unneeded equipment.
If you learn that you have an unsafe level of a health-threatening substance like lead, arsenic, E.coli, chromium, or fluoride that needs immediate treatment, the test pays for itself many times over.
If you are planning to treat a known water issue, like hardness, iron, or an unpleasant odor, a reliable, easy-to-understand independent test will give you precise information about the issue in question and provide a full picture of your water so you can select the most appropriate and cost-effective treatment. The test, again, pays for itself many times over.
When you consider the total cost of providing water for a home, a good water test is a minor expense, and the information you receive always pays for the test.
Pure Water Products offers free testing for the most basic water issues like hardness, pH, and total dissolved solids, and we also offer comprehensive water test packages from National Testing Laboratories that provide a complete picture of your water. We've been offering the NTL WaterCheck and WaterCheck with added pesticides packages for a number of years, and we're adding specialty test packs for city water users and specific well water issues.
Details about our free tests and the inexpensive National Testing Laboratories tests are on our main website.
New Product on our Website: The Sand Trap
 |
|---|

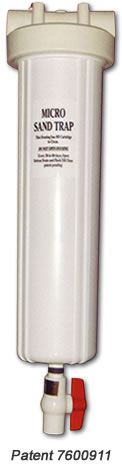

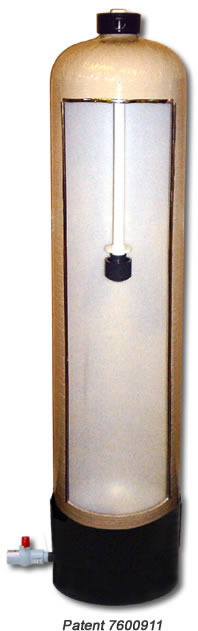

The patented "Sand Trap" is a pretreatment or full treatment for well water with heavy particulate such as sand. The full-sized version is above, for flow rates up to 24 gpm, and the "micro" version shown below is for heavy sediment only and for reduced flow rates. There's also a mid-sized version that isn't pictured. More Sand Trap details are on our main website. |
 |
Early July Water News
The Pure Water Gazette features its pick of the top water news story each day. Here's what you missed in the first half of July if you haven't been reading the Gazette:
The new Gazette format also indexes much of the significant content of the old online and paper versions of the Pure Water Gazette. Take some time to brows. As our ad says, "Vast piles of information in the Gazette's tangy, irreverent style."
Daily water news items are designed to present a concise version of an important water issue with a reference link to more information if you care to pursue it. Here's an example, the July 2, 2012 posting.

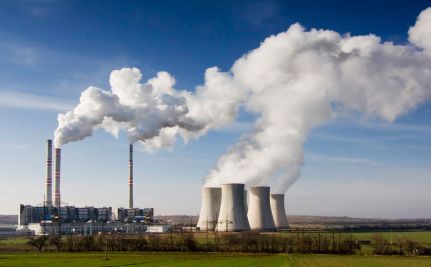

When You Turn On Your Electric Hair Dryer, You Are Burning Water: We Are Literally Burning Our Rivers
A report by River Network reveals that thermoelectric energy (including coal, nuclear and natural gas) is the fastest growing use of freshwater resources in the country. The report, Burning Our Rivers: The Water Footprint of Electricity,says that for every gallon of water used in an average household, five times more water (40,000 gallons each month) is used to provide that home with electricity via hydropower turbines and fossil fuel power sources. That means every time we flip on the television or crank up the air conditioning, it sends more potable water down the drain.
Although coal, nuclear power, and natural gas have been praised as the “cheapest” ways to produce electricity, this assessment does not take water use and consumption into account. The report found that a single MWh of electricity generated by coal withdraws approximately 16,052 gallons of water from the environment and consumes approximately 692 gallons of water.
Nuclear power withdraws approximately 14,881 gallons and consumes 572 gallons of water per MWhOn average, while natural gas withdraws approximately 6,484 gallons and consumes approximately 172 gallons of water per MWh of electricity produced.
These figures do not include water that is wasted by contaminating drinking water supplies.
 |
|---|
| For every gallon of water used in a home, five gallons are used producing energy for the home. |
According to an excellent article by Beth Buczynski:
Fossil fuels are as archaic as the rock from which they’re pried. It’s time to enter the 21st century of energy production. It’s time to acknowledge that coal, gas, and nuclear power will not be able to meet the needs of future generations. It’s time to start rebuilding an electrical infrastructure that takes into account its impact on surrounding systems, including water and wildlife. Only then will we be able to ensure a clean, healthy, well-hydrated future for our children.
Ultraviolet 101
by Gene Franks
Although ultraviolet light has several water treatment capabilities, such as reducing chlorine and chloramine or generating ozone, its main use by far is for microbe control.
Getting rid of microbial water contaminants can be done with chemicals, like chlorine or chloramines, by very tight filtration, as with ceramic filters, or by disabling the microbes with ultraviolet light.
Ultraviolet, UV, is not new. As early as 1877, the germicidal properties of sunlight were known.
Landmark events in the development of modern UV treatment include the use of mercury lamps as an artificial germicidal light source (1901), the development of quartz as a UV transmitting medium (1906), and finally the development of the first genuine drinking water application of ultraviolet as a disinfectant in France in 1910.
The technology is, therefore, a century old, and it is used world wide. Nevertheless, it is still unknown to many US state and local regulating agencies, who continue to accept chlorination as the only acceptable way to purify water.
UV treatment works not by “killing” bacteria, protozoa, and viruses, but by altering their DNA so that they cannot reproduce or infect. If chlorination is like chemical warfare directed at microbes, UV is more like a spaying and neutering program.
UV Light
UV light in the 200 to 300 nanometer (nm) range is the most effective at treating bacteria and viruses. (Visible light falls in the 400-700 nm area.) For most practical UV applications in water treatment today, the light is generated by a mercury vapor lamp, or in a gas mixture that contains mercury. Mercury is the gas of choice because the light it puts out is in the germicidal wavelength range.
Lamp output depends on concentration of mercury within the lamp, and the concentration depends on pressure. Low pressure lamps (called LP), the most common, produce UV light primarily at 253.7 nm, an ideal treatment wavelength. Some newer lamps are called “low pressure/high output" (LPHO) and some applications now use mixed vapor lamps called “amalgam” lamps. These require more electrical input and generate more UV output. LPHO lamps are roughly twice as powerful as LP, and amalgams may be about four times as powerful as LP.
The Delivery System
The standard way to treat unsafe water with UV is to send the water though an elongated chamber where it is exposed to the intense light from the mercury lamp. UV bulbs are long and narrow to allow prolonged exposure as the water passes the length of the lamp.
The lamp itself is inside a “quartz sleeve,” which protects it from contact with the water, and on the other side of the sleeve there is normally a metal reflective chamber. The water enters one end of the chamber, flows past the lamp to exit at the other end, and is in the process exposed for some time and at close proximity to the UV dosage put out by the lamp.
 |
|---|
UV Lamp, on left, and a quartz sleeve (for a smaller unit). |
UV Dosage
UV dosage is typically measured in units called "Joules," and it is most frequently expressed in terms of "mega Joules per square centimeter," or mJ/cm². (Microwatts per second per square centimeter, expressed as µWs/cm2, and mJ/cm2 represent the same dosage and the two systems are used interchangeably.) The higher the number, the higher the dosage.
The UV dosage received by the water increases as the flow rate of the water decreases, so a UV unit that puts out a dosage of 16 mJ/cm² while treating water at a flow rate of eleven gallons per minute (gpm) will be rated as 40 mJ/cm² if the flow rate is decreased to 4.5 gpm.
Put another way, a UV system rated by its manufacturer to treat water at 40 mJ/cm² at 4.5 gpm will be delivering a dosage of 16 mJ/cm² even if the user exceeds the recommended limit and runs the water at eleven gpm.
The tendency now in UV dosage is to follow the “more is better” view we've all been indoctrinated in. If ten nuclear bombs will destroy the world, to be safe we need ten thousand. The most common concerns, e Coli, Giardia, and Cryptosporidium, are effectively eliminated at less than seven mJ/cm². The minimum dosage now recommended by NSF, however, is 40 mJ/cm².
Factors That Affect UV Effectiveness
First, there is the age of the lamp. UV lamps lose strength with time, and almost all manufacturers assume a once-a-year replacement when they design their units. It is a mistake to believe that if the lamp is still burning all is well. UV lamps should be replaced once a year, and when replaced they should still be burning strong.
Then there is flow rate. The unit should be sized to provide adequate protection at the highest possible flow rates, but practicality should tell you that in most residential situations, most water is used at a couple of gallons per minute and a great deal of the time—most of the time, in fact—no water at all is being used.
Also a factor is general absorption of the UV light for unintended purposes. UV makers usually require that water have less than seven grains per gallon of hardness, less that 0.3 ppm iron, less than 0.05 ppm manganese, and that it be generally clear and free of particulate and tannins. All of these can create situations where the light is absorbed and, therefore, its anti-microbial activity is diminished. Hardness, for example, can form scale on the outside of the quartz sleeve which blocks the passage of light.
A related factor is called shadowing. It is primarily caused by particles in the water which can allow microbes to “hide” from the light and not receive adequate UV dosage. The commonly accepted practice in UV treatment is to put a sediment filter of 5 microns or less in front of the treatment chamber to screen out any particles that could allow shadowing. Even if the water looks perfectly clear to the eye, putting a five-micron filter in front of the UV unit is a good idea.
UV as a Germicidal Treatment. Pros and Cons
The good thing about UV is that in addition to being a very effective treatment for microbes, it is relatively simple and inexpensive to buy and to maintain. It adds no chemicals to the water and leaves no “by-products.” It is very safe, if you follow a couple of simple rules (like don't stare at a burning UV lamp because it can damage your eyes, and remember that treatment chambers can be hot to the touch). Compared to ozone, chlorine, or even hydrogen peroxide, UV is a very safe home treatment. Also compared with other treatments, UV requires little maintenance.
The main disadvantage of UV as germicidal treatment is that it has no residual effect. Bacteria are treated when they pass the lamp, but contamination that occurs downstream of the lamp is not treated. Chlorine, by contrast, stays in the water from the point of treatment to the final point of use and prevents reinfection. The need for a constant supply of electricity can be seen as an additional disadvantage. If the power goes out, you shouldn't use the water.
 |
|---|
| Above, a very basic UV system. The quartz sleeve, lamp inside, inserts into the stainless treatment chamber. The simple control system provides both visual and audible warning of UV lamp failure. The system comes in 2, 6, 8, and 12 gpm versions. The lamps provide strong UV dosage (30 mj/cm2 at the end of the lamp's life) that is certified by independent testing (BioVir). Very easy to install, the unit wall mounts with two simple clips. |
UV from Pure Water Products
Classic Plastic Pura Units. We've been in the water treatment business for over 25 years, and Pura was one of our first products. We started selling plastic-housing Pura UV systems just a couple of years after Pura went into business in the late 1980s, so it's a product dear to our hearts. The Pura #20 lamp, used on all whole house plastic units, is, in fact, our most successful product in terms of sales. We stock all units and all parts, "every nut and bolt," of plastic housing Pura units. We have an entire website, http://www.purauv.com, devoted to plastic-housing Pura units. We're the best source, anywhere, for plastic Pura units and parts. We have some expertise with the units and can help with service issues.
Stainless Steel Units. We have stainless units both by Pura and Watts. We aren't offering complete stocking of the recently-created Pura stainless units yet, but we have them on the Occasional's website and can provide units and parts upon request. We stock all systems and parts for the Watts stainless units, as pictured above, although they must still be ordered by phone. We don't yet have them on our main website, but you can see them on the Occasional's new products listing.
